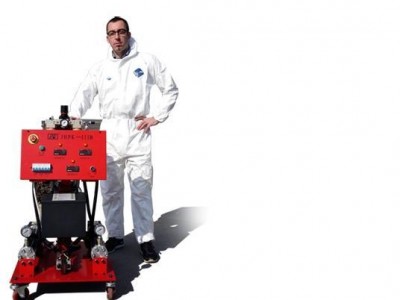

通過認證?JHPK-ⅢB型聚氨酯高壓無氣噴涂(澆注)成型系統，采用美國著名品牌部件，從而確保雙組份原料所需的混合壓力；分別為2500w的獨立加熱器，為原料提供可靠的加熱源，從而有效的解決了原料的粘度問題；15米的加熱保溫管路確保所加熱的原料熱量不散失；無需溶劑的噴槍清洗系統，使您的操作、維護更輕松。
JHPK-IIIB ,High-pressure Polyurethane Spray and Perfusion Equipment.The parts of the equipment are from America making sure the pressure is enough for mixing the double component materials together.It has the separate heater which is 2500 watt;provides the reliable heat source for the row materials.The pipe of heating and preserved is 15 meters and it preserves the heat energy of the materials.The system of spray gun with non-solvents washing makes the machine easy to operate,and maintain.
| 標準配置： | Standard Configuration: |
|---|---|
|
主機：1臺
噴槍：1把 加熱保溫管路：15米 聯槍短管：1.5米 供料泵：2只 |
Mainframe: 1 set
Spray gun: 1 set Heating and preserved pipe: 15m Connecting pipe for spray gun: 1.5m Max.Pipe length:45m Transfer pump: 2 sets |
| 技術參數： | Technical Parameter: |
|
電 源：單相 220V 7000W 50Hz
氣 源：7-11kg/cm2 0.9m3/分鐘 原料輸出量：8kg/分鐘 原料加熱功率：2250W×2 管路加熱功率：2000W 單組分原料壓力：75-90kg/cm2 |
Electrical source: 220v 7000w
Air source:0.5~0.8Mpa(70~120psi) ≥ 0.9m3/min Output: 4~8kgsmin Heating device power for material: 2500w ×2 Heating power for pipe heating: 2000w Single component output pressure: 5~10Mpa (700~1500psi) |
| 裝運參數： | Technical Parameter: |
|
重量：150kg
體積：800×700×1100(mm) |
Weight: 150kgs
Volume: 800x700x1100(mm) |
