用于PlyMatch復合材料制造的AR技術
英國復合材料設計和制造解決方案專家Anaglyph將于3月份在JEC World 展示新版本的手工鋪層鋪設技術PlyMatch。
原文如下：
PlyMatch使用增強現實技術在顯示器上顯示實際和目標層輪廓和纖維方向細節的實時組合圖像，以便操作員可以匹配這兩者。它用于復合材料零件的手工鋪層制造中的層的精確放置，以及用于自動化方法的監控和驗證。它在復雜的幾何形狀，高曲率或封閉空間的情況下特別有用。
據該公司報道，PlyMatch目前在航空航天，汽車，自行車和運輸行業的制造商中使用。
“ Laminate Tools是一個獨立的Windows應用程序，與大多數行業標準接口。它解決了整個設計 - 分析 - 檢查 - 制造小組的結構設計過程，但側重于復合材料的特點，“該公司解釋說。“它補充了您現有的CAD系統和/或FEA環境。Laminate Tools具有Solidworks，Rhino，Nastran，HyperMesh，Ansys和Abaqus的原生界面。它有助于優化和制造精確的設計，節省寶貴的團隊時間。“
CoDA（復合構件設計分析）用于具有板，梁，接頭，法蘭或層壓板幾何形狀的初步分析子構件。
基于經典層壓理論，LAP（層壓分析程序）用于分析受到面內載荷和力矩的任何類型的復合層壓板。除了厚度之外，平板層壓板沒有固定的尺寸，因此分析可以應用于已知載荷和變形的任何復合部件。
20多年來，Anaglyph一直為復合材料設計和制造提供解決方案。其軟件正在30多個使用?！?br />
原文如下：
Anaglyph, the UK composites design and manufacturing solutions specialist, will demonstrate the latest version of its hand-layup ply placement technology PlyMatch at JEC World, in March.
PlyMatch uses augmented reality to show the live combined images of actual and target ply outlines and fibre orientation details on a monitor, so that the two can be matched by the operator. It is used for the accurate placement of plies in hand lay-up manufacture of composite parts, as well as for monitoring and validation of automated methods. It is particularly useful in case of complex geometries, with high curvature or enclosed spaces.

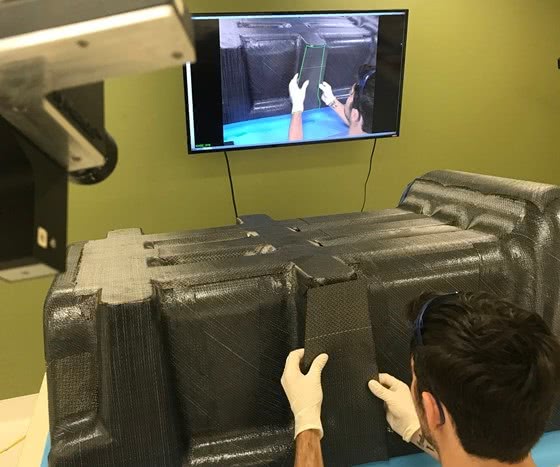

PlyMatch uses augmented reality to show the live combined images of actual and target ply outlines and fibre orientation details on a monitor. ? Anaglyph
PlyMatch is used by manufacturers in aerospace, automotive, bicycle and transport sectors at this stage, the company reports.
“Laminate Tools is a stand-alone Windows application, interfacing with most industry standards. It addresses the entire Design-Analysis-Check-Manufacture group process of structural design but focusing on the composite material features,” the company explains. “It complements your existing CAD systems and/or FEA environments. Laminate Tools has native interfaces to Solidworks, Rhino, Nastran, HyperMesh, Ansys and Abaqus. It helps optimise and manufacture exactly what is being designed and saves valuable team time.”
CoDA (Composite Component Design Analysis) is used for preliminary analysis sub-components with Plate, Beam, Joint, Flange or Laminate geometries.
based on Classical Laminate Theory, LAP (Laminate Analysis Program) is used to analyse any type of composite laminate subjected to in-plane loads and moments. The flat laminate is no fixed size, apart from its thickness, so that the analysis can be applied to any composite component wher loadings and deformations are known.
Anaglyph has been offering solutions for composites design and manufacturing for over 20 years. Its software is being used in more than 30 countries worldwide.
